Actiontec IS560LH: an ISA voice/fax modem

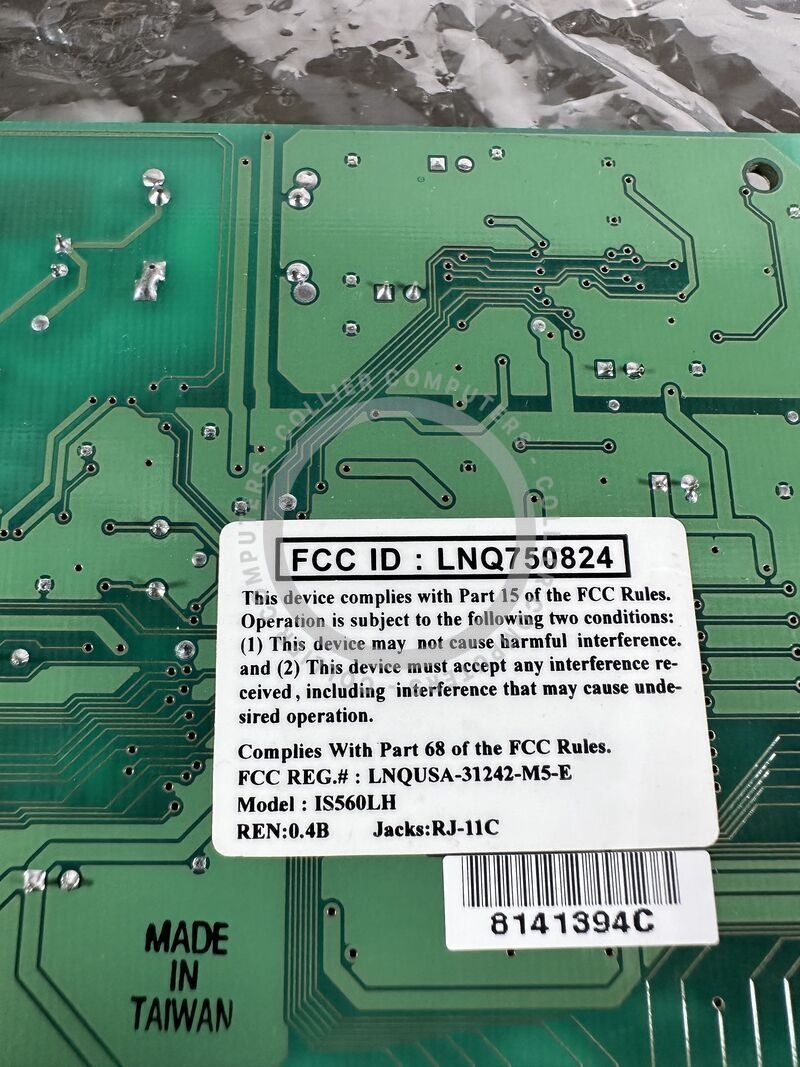

The label on the back of this Actiontec modem reads Model: IS560LH, with FCC ID LNQ750824. Its original Collier article was titled “Actiontec PCI Modem,” but the photographs show a 16-bit ISA edge connector.

Correcting the interface

The recovered Actiontec V.90 Internal Voice/Fax Windows Modem manual instructs the reader to use a 16-bit ISA expansion slot on page 9. That agrees with the photographed connector and explains why the old article mentioned an ISA Plug-and-Play enabler while incorrectly calling the card PCI.

This is an ISA-era component. It belongs in a machine with the appropriate slot and resources; the model name does not make it a PCI or PCI Express card.

What the archive preserves

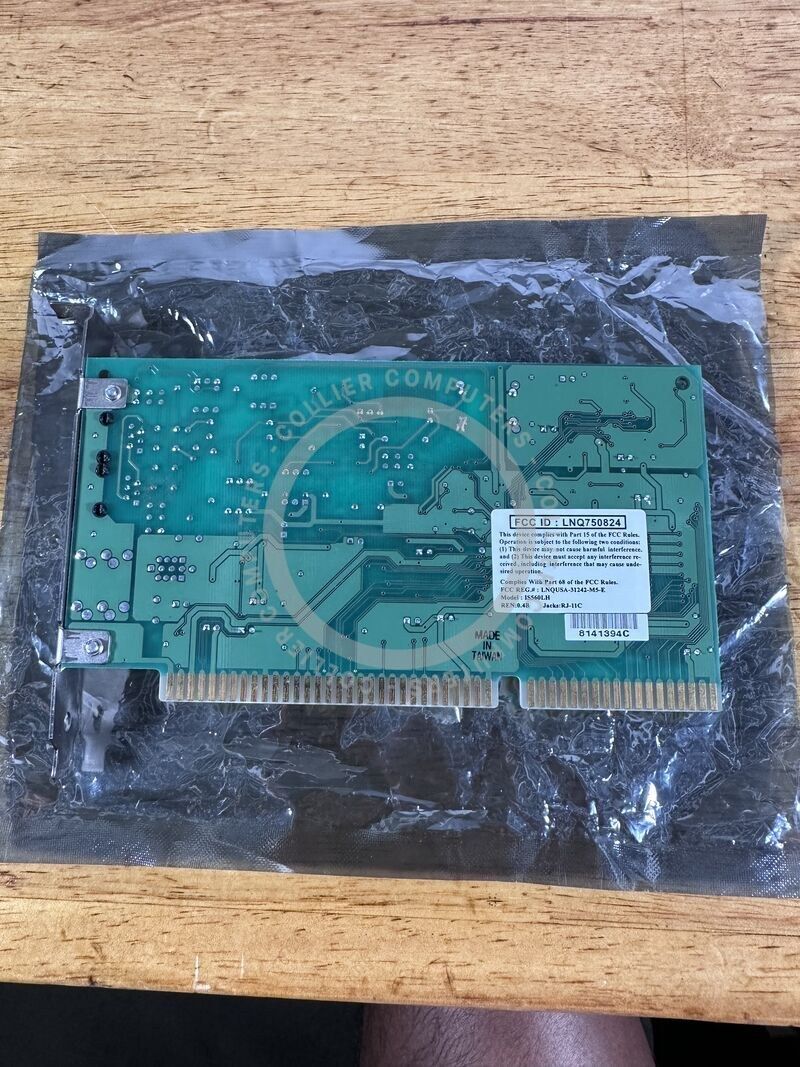

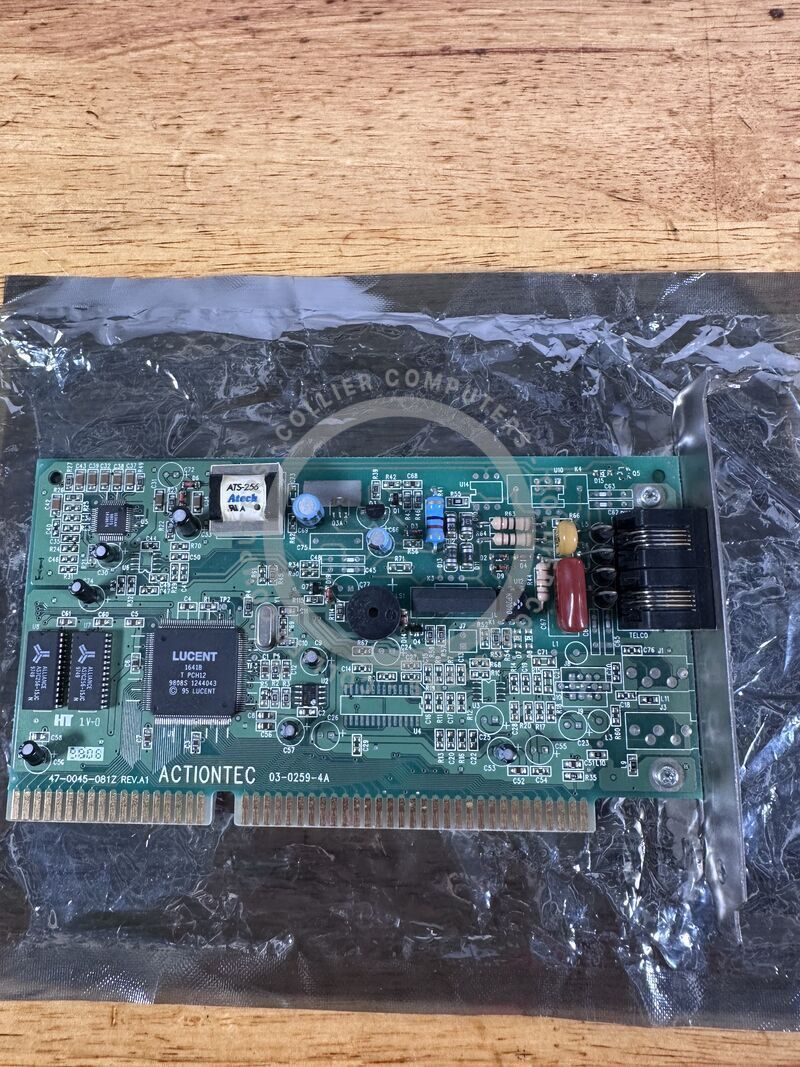

The three original photographs show the component side, the reverse side, and the identifying label. The component-side image also preserves the Actiontec board markings and its phone connections.

A manual and an archive named EX560LKU_INF.zip were linked from the old post. The latter names a different model, so it is not offered here as a confirmed IS560LH driver. The original files have been retained, but the previous mixed download list is not being repeated as installation advice.

No fresh modem, telephone-line, or operating-system test was performed for this consolidation. The reliable findings here are the photographed identity, ISA interface, and the matching slot instruction in the recovered manual.

Original gallery

Originally documented in January 2024. The old URL slug remains available even though its “PCI” wording was incorrect; the title and article now identify the interface correctly.
